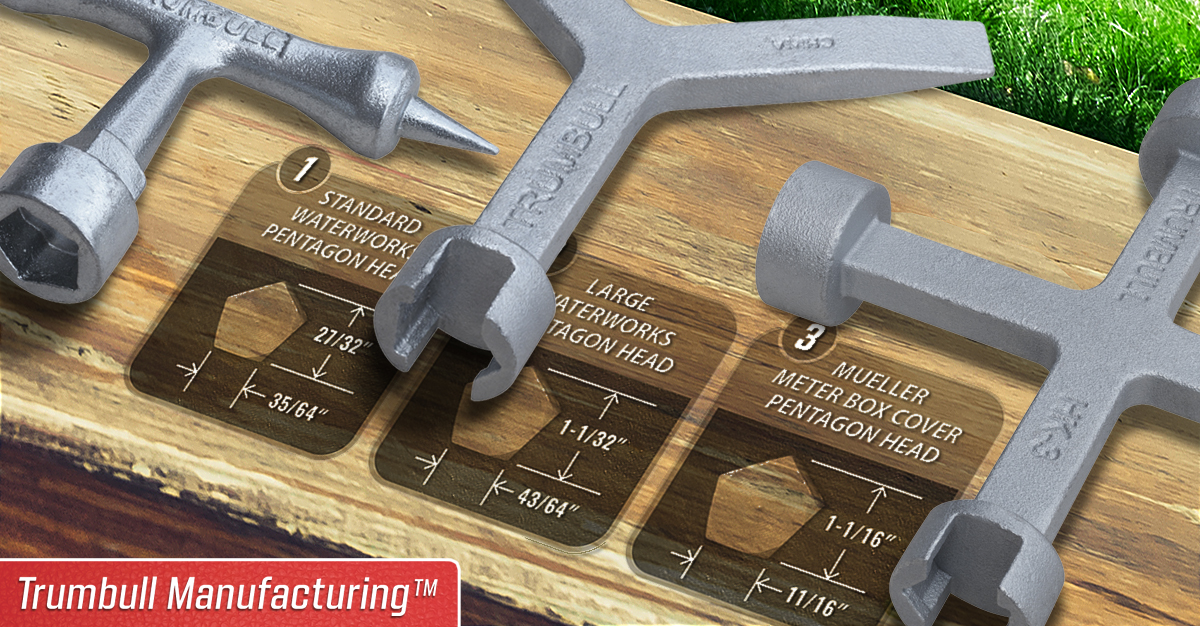

Match the numbers above with the ones shown in each of the photos below.

• Fits standard pentagon heads.
• The socket cavity retains the head during removal, for ease in lifting the lid of a meter box from the frame.
• The convenient hammer and pick ends assist in breaking ice and clearing debris.
• A square shank is provided on the socket for applying extra torque.

MODEL HK-1

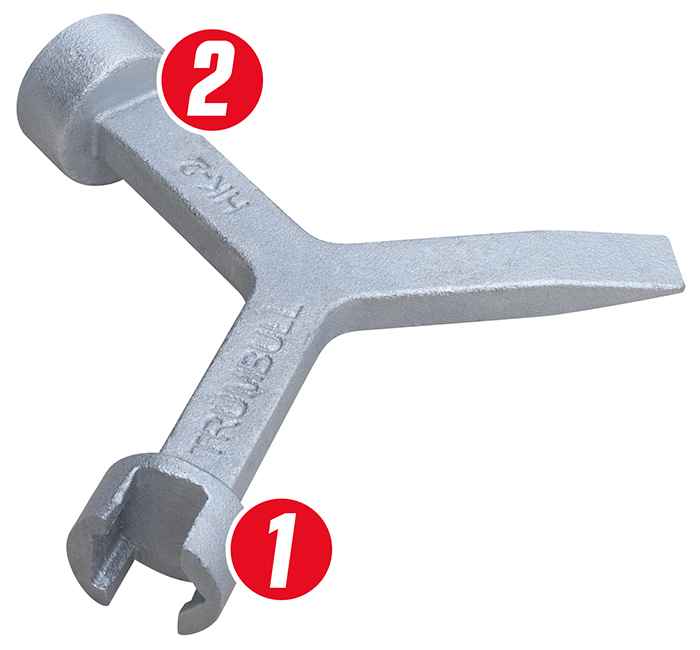

• The HK-2 has two pentagon sockets, plus a tapered-end prying blade.
• Socket 1 fits standard pentagon heads, and has a slot to operate T-head of curb and meter stops.
• Socket 2 fits large pentagon heads.
• Both sockets have cavities to retain the pentagon head during removal, for ease in lifting the lid of a meter box from the frame.
• The tapered blade end is designed for prying, or for use as a chisel.

• he HK-3 has three pentagon sockets, plus a tapered-end prying blade.
• Socket 1 fits standard pentagon heads, and has a head retention cavity; it also has a slot to operate T-heads of curb and meter stops.
• The other two sockets both fit the 1-1/16″ pentagon head used on Mueller meter boxes. One socket has the head-retention cavity to retain the pentagon head during removal; the other socket has the external lug which engages the lid recess. Both methods assist in lifting the lid of a meter box from the frame.
• The tapered blade end is designed for prying, or for use as a chisel.
